- Temperature logger
- Range: -25°C tot +60°C
- Up to 2 years battery life
- Customizable alarms
- FDA 21 CFR Part 11 compliant
General information
SRIC-4 single-trip data logger for monitoring temperature

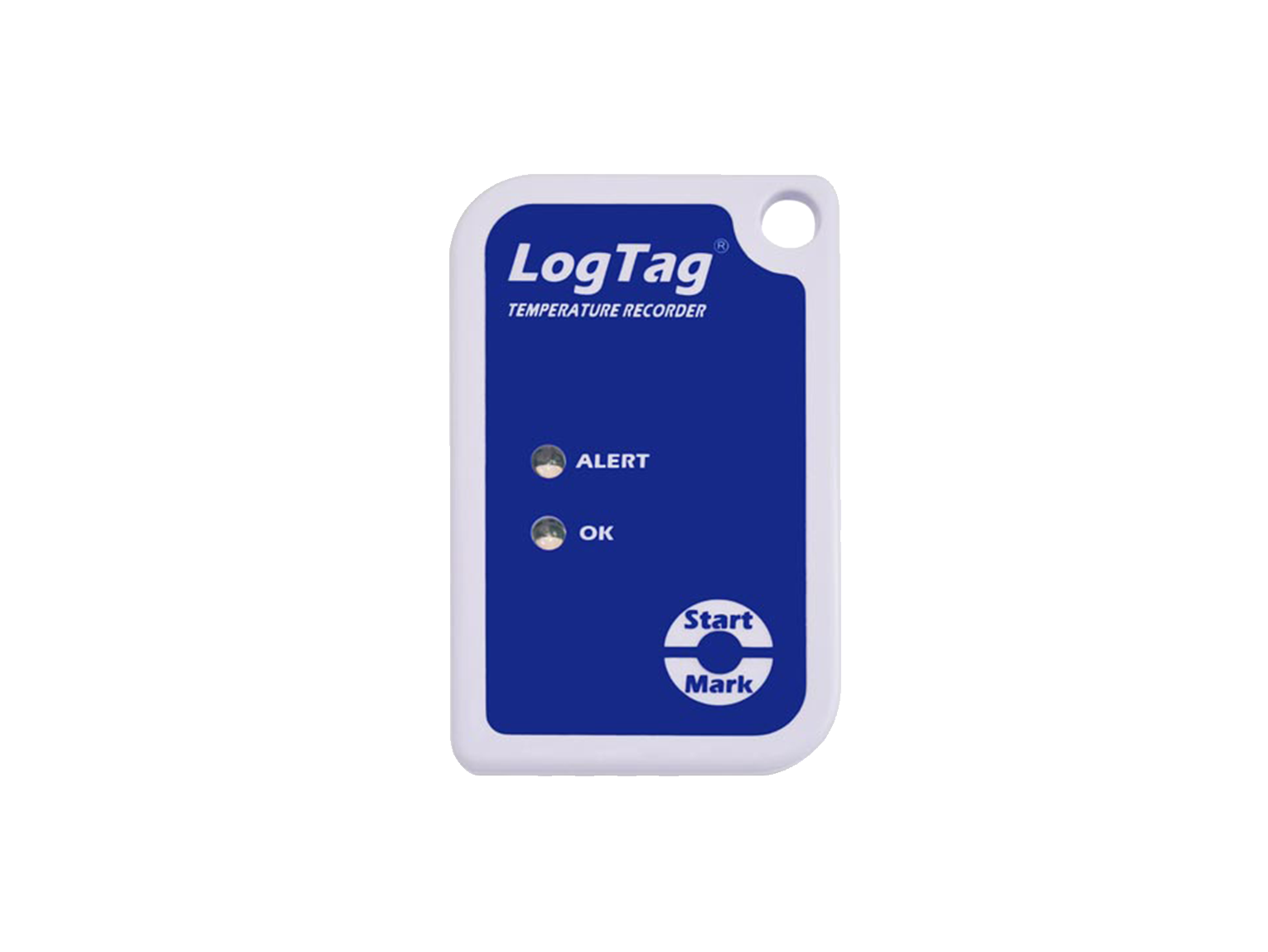

The LogTag SRIC-4 is a single-trip temperature data logger. The logger is specifically designed to monitor temperature sensitive products.
The SRIC-4 is used in both short and long distance transport applications.
The SRIC-4 comes with a 3968 log memory and a 6-month operating life in a robust yet inexpensive package.
‘Inspection Marks’ can be placed in recording to identify external events, such as loading or unloading goods.
Technical specifications
| Model | SRIC-4 |
| Measurement Range | -25°C to +60°C (-13°F to +140°F) |
| Accuracy | ±0.5°C(±0.9°F) or better for measurements from -5°C to +30°C (+23°F to +86°F) ±0.8°C(±1.5°F) or better for measurements in other areas of rated range. |
| Resolution | < 0.1°C |
| Sensor Reaction Time | Typically less than 5 minutes(T90) in moving air (1m/s). |
| Sampling frequency | Adjustable, 1~60 minutes or 1~18 hours |
| Capacity | 3968 logs (i.e 13.75 days @ 5min logging, 41.25 days @ 15min logging and 82.5days @ 30 min logging.) |
| Logging Start Options | Push button start or specific date & time. |
| Recording indication | Flashing ‘OK’ indicator / flashing ‘ALERT’ indicator. |
| Download time | Typically with full memory (3968 readings) in less than 4 secs depending on computer or readout device used. |
| Environmental | IP65 (roughly equivalent to NEMA 4) |
| Power Source | 3V LiMg battery |
| Battery Life | Projected life of 6 months of operation from time of configuration. Shelf life before configuration of up to 2 years (providing a typical operating life of 65 days). |
| Size | 77mm(H)x54.5mm(W)x8.6mm(T) |
| Weight | 28 g |
| Case Material | Polycarbonate |
