- Single use data logger
- Range: -80°C up to +40°C
- Up to 1000 hours battery life
- Customizable alarm settings
- FDA 21 CFR Part 11 compliant
General overview

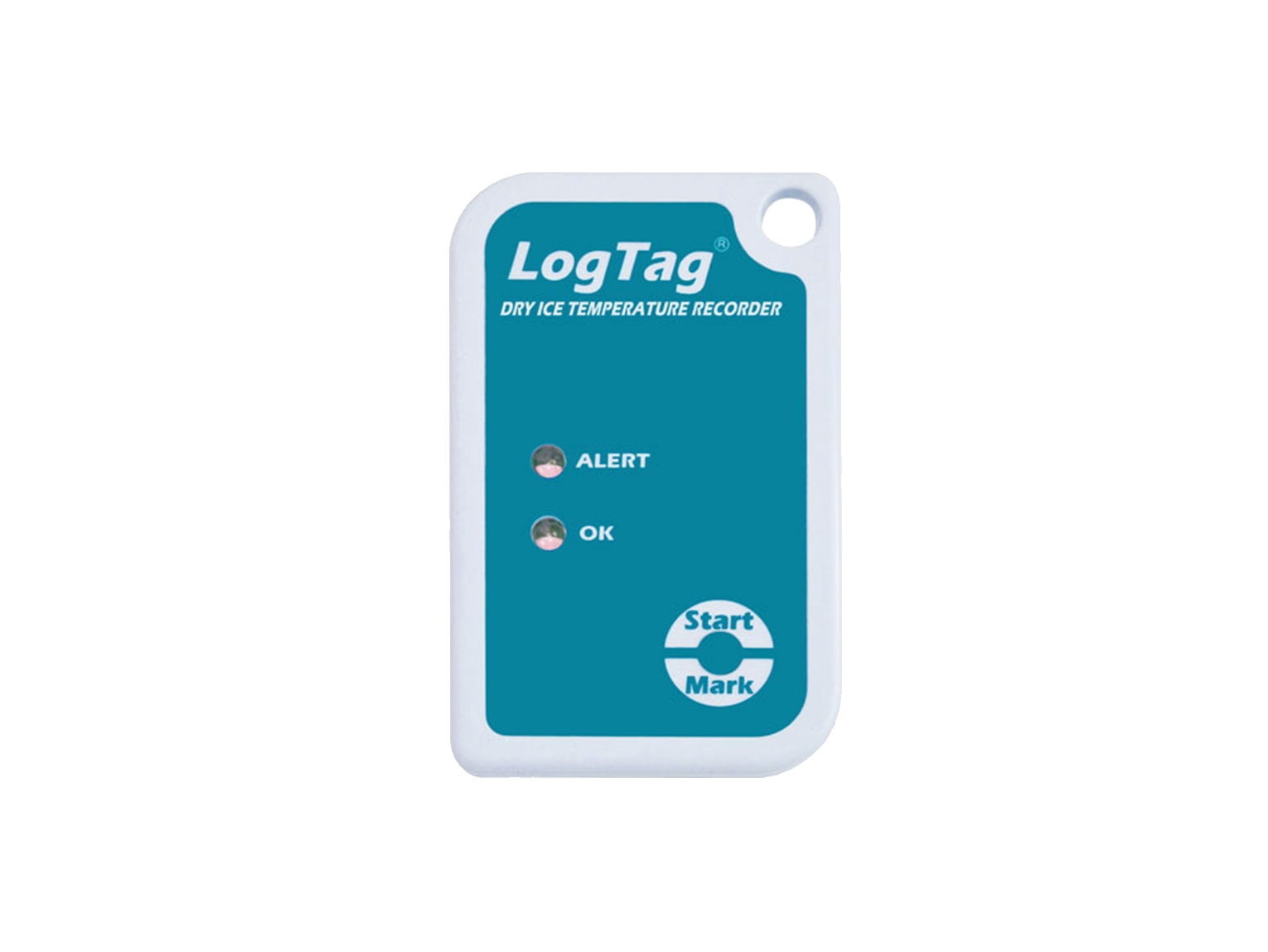

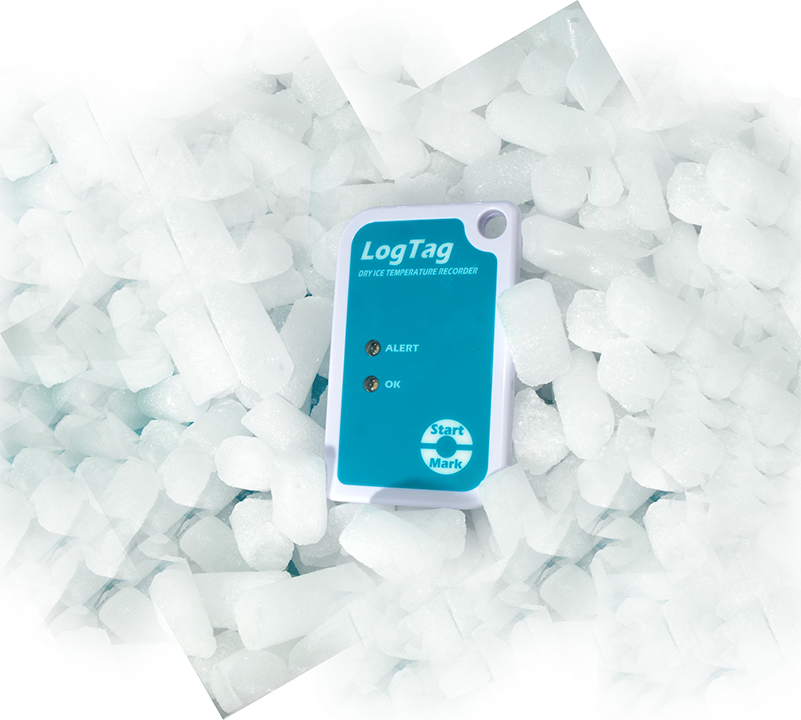

The SRIL-8 data logger is a single use, ultra-low temperature data logger with integral data logger probe. It is designed specifically for use in the distribution of time temperature sensitive products in dry ice at -80°C.
Simply configure the SRIL-8 temperature data logger using the USB interface cradle and free issued LogTag data logger software and deploy the data logger directly into the cold chain shipping container. Ideally suited to recording up to 40 days of time stamped temperature readings (8-minute interval) during the transportation process.
Features
Upon receipt of the delivery a clear indication will be presented via the green and red flashing LED and a full audit of the shipment can be extracted, verified and automatically distributed to assigned personnel following download. Rapid configuration, retrieval of collected data and analysis is performed using the free issued LogTag analyser data logger software in conjunction with a USB interface cradle.
Be aware: Configuration and data retrieval requires a USB interface cradle.
| Manufacturer | LogTag |
|---|---|
| Parameter(s) | Temperature |
| Usage Type | Single |
| Connectivity | USB via interface |
| Sensor internal or external | Internal |
| Channels | 1 |
| Sensor type | Thermistor |
| Memory | 8000 |
| Sample rate | 1 minute ~ 18 hours |
| Range | -80°C ~ +40°C |
| Accuracy | <+/- 1.7°C Contact our calibration department for advice on offset adjustment. |
| Resolution | 0.1°C between -80°C ~ 0°C |
| Material | Polycarbonate |
| Power | 3.6v low temperature battert |
| Battery Life | 1000hrs |
| Dimensions | 86mm x 54.5mm x 8.6mm |
| Environment | IP65 NEMA 4 |
| Operating Conditions | -80°C ~ +40°C Suitable for use in dry ice shipment and ultra low temperature freezers |
| Alarm | Flashing LED and in report |
| Features | LED with confidence and alarm flashing function Push button start 21 CFR Part 11 compliance |
| Computer Requirements | Windows PC |
