Tecnosoft S-Radio 100 / 5 mm

  •   Wireless temperature data logger
  •   View process data in real-time
  •   Food grade & waterproof
  •   Battery is user replaceable
  •   Accredia traceable certificate
  Request quotation

General information

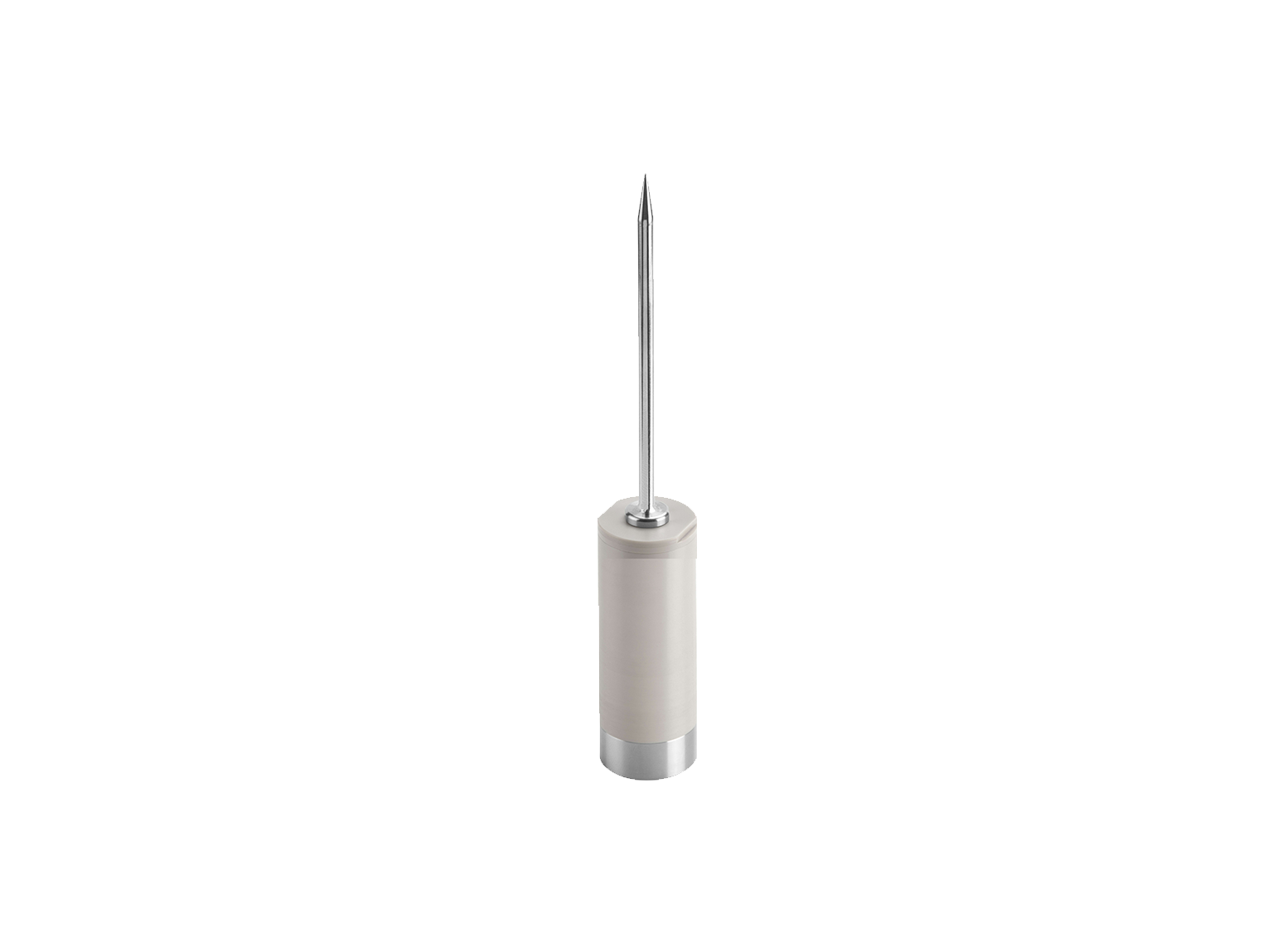

S-Radio 100 / 5 mm wireless temperature data logger up to 140°C with 100 mm length, 5 mm diameter probe

A wireless  temperature data logger from -40°C to 140°C (calibration from 25°C to 140°C) with 100 mm length, 5 mm diameter external probe on a 13 mm cone base (base height is not counted for probe length), managed with Windows software and USB interface. Battery is user replaceable and the data logger is provided with an Accredia (NIST equivalent) traceable cetificate on 4 points.


View process data in real time

Process data can be viewed in real time on PC screen along with progressive lethality (pasteurisation units) values. Alarms can be set on temperature and lethality value itself. With P-Radio you can act in real time on the process, knowing the thermal curve at the core of the product.


Other versions

The other versions of the data logger are:

  • S-Radio: with rigid probe of different lengths
  • S-Radio Flexible: with flexible cable probe and rigid probe at the end
  • S-Radio Bendable: with semi-rigi metal bendable probe and rigid probe at the end

The version for up to 100°C is available too, along with flexible, bendable versions.

It is part of a series of data loggers divided in P-Radio (up to 100°C) and S-Radio (up to 140°C). They require an interface for PC connection: DiskInterface HS, Multibay. For real time data the USB Radio Receiver is needed as well.

There are also other models of high temperature data loggers, for pressure and humidity too.

Technical Specifications
Description Specifications
Dimensions 76 h X 30 Ø (mm)
Probe dimensions Probe base dimensions 13 h X 15 Ø (mm) – Probe 100 l X 5 Ø (mm)
Weight 76 gr
Materials Stainless steel AISI316L, PEEK
Temperature range 40°C ÷ +140°C
Standard calibration points (temperature) 25/50/75/100/125/140°C
Extra calibration points (temperature) Within the range -40 °C ÷ +140 °C
Temperature resolution 0,01 °C
Temperature accuracy ± 0,1 °C (within the calibration range)
Memory (n. of acquisitions) 121.171
Acquisition step From 1 every second up, with 1 second steps
Protection degree IP68
Battery life +3800000 Acquisitions to 1 second continuously (time @ 25 ° C. The battery life is shorter at low and high temperatures)
Software & Mobile App SPD, TS Manager, Process Monitor
Accessories DiskInterface HS, Multibay universale, USB Radio Receiver, Ethernet receiver, 4-20 mA receiver

Main features

  • With thcker probe to be more robust
  • Completely food grade and waterproof
  • All software calculate lethality value (F0, PU, A0 ecc.)
  • Replaceable battery (software shows battery status)
  • Real time data transmission, no installation requested
  • Accredia (NIST equivalent) traceable calibration certificate included
  • Available extended calibration from -40°C (order extra calibration points)



  • High accuracy and precision, food grade, probes of different size
  • Very easy to deploy in any type of package with the fastening system
  • Fast response time thanks to the 3 mm diameter probe
  • Printed reports compliant with health regulations and ISO (data are not editable in the software)
  • Knowing the thermal curve in real time will allow to act immediately saving time, money and increasing the quality of the product


The system

The system is made up by:

  • S-Radio temperature data logger
  • DiskInterface HS or Universal Multibay
  • USB Radio Receiver or Ethernet Receiver (for Process Monitor Pro software only)
  • SPD software, TS Manager software (compatible with the FDA 21 CFR Part 11 regulation) or Process Monitor software



  • SPD
  • TS Manager
  • Process Monitor Lite
  • Process Monitor Pro
  • DiskInterface HS
  • Universal multibay
  • USB Radio Receiver
  • Ethernet radio receiver
  • 4-20 mA receiver
  • Locking bolt
  • Fastening system
  • Teflon protective tube
  • P-Radio, S-Radio battery kit
