Cryopak USB PDF logger

  •   Temperature logger
  •   Automatic PDF reports
  •   Preprogrammed datalogger
  •   No software necessary
  •   Available with calibration certificate
  Request quotation

General information

Cryopak USB PDF logger

The single-trip USB PDF logger with plug & play technology generates a comprehensive PDF report (also available as CSV file) without the need for software.  This user friendly temperature recorder comes preprogrammed as a 4 day, 7 day or 10 day, or any custom configuration including temperature, interval and start delay.

With its newly expanded 4 alarm threshold capability, the iMINI USB PDF is the ideal solution for the food, pharmaceutical and life science industries.  It is available with either a factory issued statement of accuracy or NIST traceable certificate of calibration.  The compact profile and lightweight design, along with the waterproof pouch, allows this data logger to go virtually anywhere.



  • Plug & Play single trip data logger
  • No special software; data automatically opens as a PDF
  • Preprogrammed to customer specifications
  • Compact profile; weighs less than 14g
  • Contained in waterproof pouch
  • Large memory capacity; 7928 readings

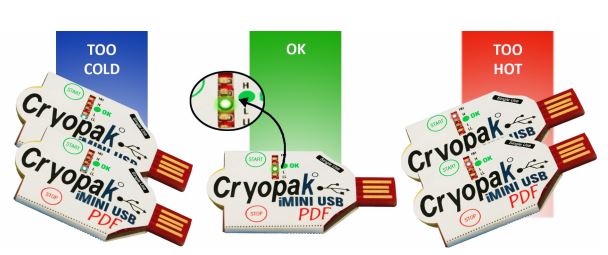

  • Five LEDs provide instant status
  • 21 CFR Part 11 compliant


Four Alarm Thresholds

Now with expanded alarm thresholds, users are able to see a warning of temperature variances using the low and high settings as well as catastrophic levels with low low and high high settings, ensuring safe transport of perishable cargo.


Technische specificaties
Description Specifications
Product Code MS-ST-S-8
MS-ST-S-8-P (Pharma Compliant)
Memory Options 8K, 7928 readings
Program Interval 5 seconds to 17 hours
Time Accuracy ±1 hour per year
Sensors Internal
Temperature Range -40 ⁰C to +80 ⁰C (-40 ⁰F to +176 ⁰F)
Temperature Accuracy ±0.5 ⁰C (-40 ⁰C to -10 ⁰C), ±1 ⁰F (-40 ⁰F to +14 ⁰F);
±0.3 ⁰C (-10 ⁰C to +80 ⁰C), ±0.6 ⁰F (+14 ⁰F to +176 ⁰F )
Resolution 0.1 ⁰C (0.1 ⁰F)
Sensor Response Time T90 of 5 minutes in moving air
LCD Operating Range N/A
Alarm Thresholds 4 thresholds; 2 red LEDs, 2 blue LEDs
Alarm Configuration High high, high, low & low low
Bookmark Yes, maximum 8
Preprogram Option Factory programmed
Start Option Push button
Auto Restart N/A
Start Delay Yes, 1 minute to 99 days
Stop Option Yes, stop button (can be disabled)
Size 68x37x5mm (without sleeve); 81x52x5mm (with sleeve)
Weight 14 grams
Case Material Plastic sleeve
Battery 3.0V
IP Rating IP 65
Warranty 1 Trip
Calibration 3pt NIST traceable built into PDF (MS-ST-S-8-P only
Accuracy Certificate Upon request
Other Certification ISO9001:2008, CE, RoHS
Battery Life 1 Year
Interface USB
Software ConsolePlus
Default File Format PDF, TXT, CVT & CSV
Data Export TXT, CSV, CVT & PDF
Security All files/data in the logger are read only (write protected)
