Verigo Pod RH

  •   Temperature and humidity logger
  •   BlueTooth datalogger tot 30m
  •   Read and program remotely
  •   Permanent cloud storage
  •   App for Android and iOS
  Request quotation

SKU: PA2

Categories: , ,
General information

General overview

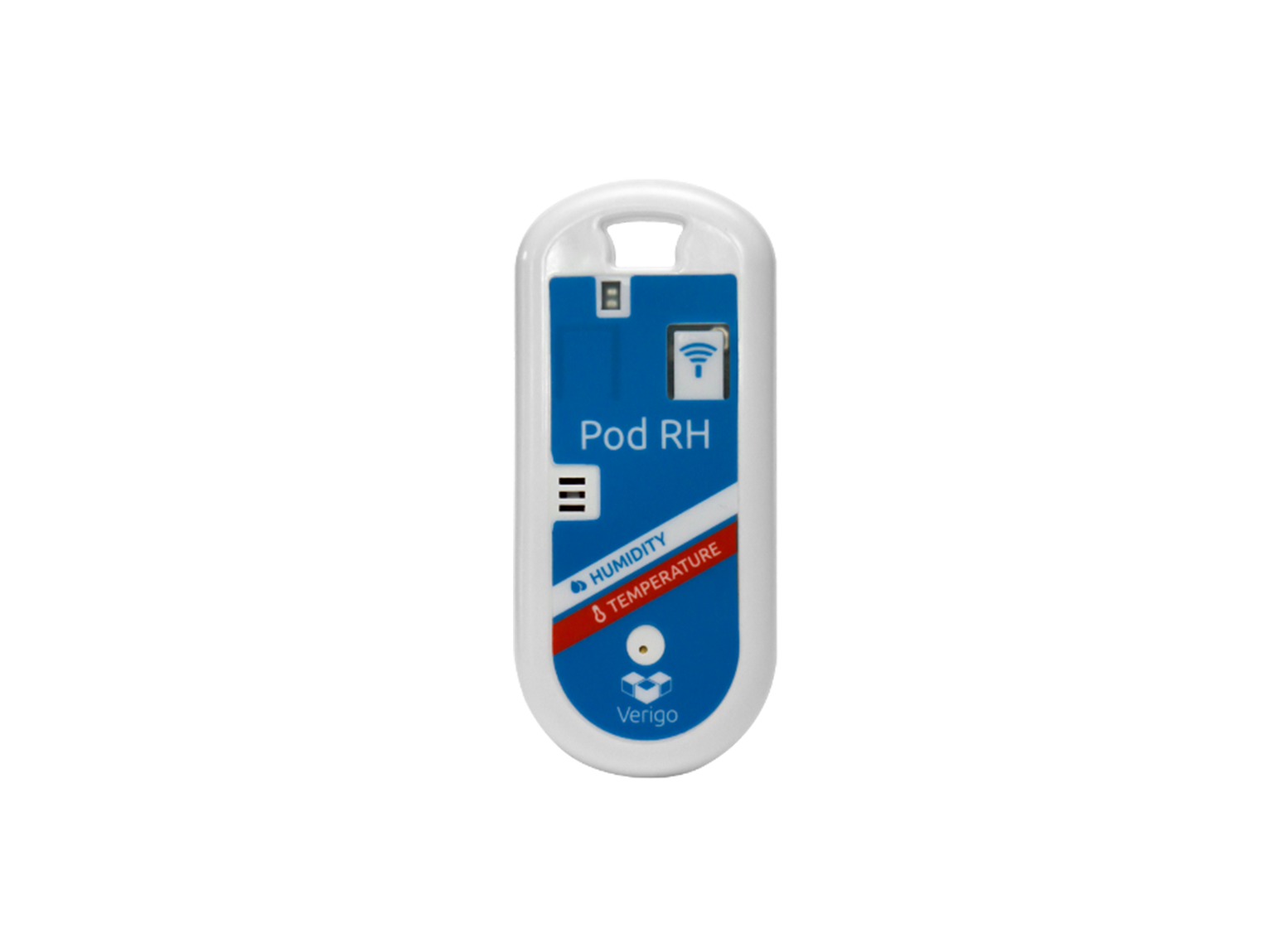

The Pod RH environmental data logger records and wirelessly transmits temperature and relative humidity (RH) data and excursion alerts to your smartphones and tablets; no cables or readers required! Simply download Verigo’s app for Android or iOS to your smart device and start using your Pod RH.

Users can customize their Pod for each monitoring session by inputting a distinct name, scanning a product barcode, setting temperature and RH thresholds, and fully configuring for any particular application.

App for smartphones and tablets

During use, the mobile app allows users to view all Pods up to 30 meters (100 feet) away in real time with their current temperature and RH readings and alerts.

Want to see more details about a particular Pod? Wirelessly connect to your Pod to view full data graphs and detailed alerts indicating threshold excursions. For further analysis, use the app’s share function to email data as a PDF or CSV; straight from your mobile device.

Store data in the cloud

All data is stored in the cloud automatically via Verigo’s secure Web App. Which allows users back at the office to search complete records of all Pod data and view location points. Users can generate PDF and CSV files for review and analysis.

Technical specifications
Description Specifications
Temperature sensor
Measurement Range -20°C to 60°C (-4°F to 140°F)
Accuracy* ± 0.4°C max (from -10°C to 60°C)
± 0.72°F max (from 14°F to 140°F)
± 0.6°C max (from -20°C to < -10°C)
± 1.1°F max (from -4°F to <14°F)
Resolution 0.01°C (0.018°F)
Response Time (T90) Less than 20 min (in < 0.2 m/s airflow)
Humidity sensor
Measurement Range 0% to 100% RH
Recommended Operating Range 20% up to 80% RH (non-condensing from -10°C to 60°C)
Accuracy ± 6% RH max (over recommended range)
± 4% RH typical (over recommended range)
Resolution 0.03% RH
Wireless communication
Transmission Range Up to 30 meters (about100 feet)
Data Acquisition Visual using Mobile and/or Web App
Email as CSV and/or PDF
Signal Strength Visible in Mobile App
 Logging options
 Logging Interval 1 min to 18 hours, user configurable
 High-Resolution Logging User can enable or disable (logging occurs if temperature changes)
 Sampling Interval 30 seconds
 Activation Button Press or Using Mobile App: Immediate and Delayed Logging
(set delay interval or date & time)
 Shutdown Using Mobile App (data logging will stop when memory is full)
 Sensor Thresholds User configurable over full operating range
 Notifications Enable or disable SMS/email notifications indicating sensor threshold
excursions
Hardware
Single/Multi-Use Multi-Use
Battery Life*** Shelf Life (inactive): 7 years
Typical**: 2-4 years
Continuously Active: 1.5 years
Battery Type Lithium-ion (primary, non-rechargeable)
Low Battery Indicator Visible in Mobile App
LED indicator
 Upon a button press:  1 green: Inactive Pod
 (flashes seen)  2 green: Active Pod
 2 red: Active Pod with a threshold excursion
 4 green: Pod currently connected to a mobile device
 4 red: Pod connected to a mobile device, with a threshold excursion
Operating range -20°C to 60°C (-4°F to 140°F)
Memory Temperature: 40,000 data points
Humidity: 40,000 data points
Case ABS
Dimensions 97 x 43 x 13 mm (3.8 x 1.7 x 0.5 in)
Weight 30g (1.06 oz)
Certifications FCC, CE



* Per sensor manufacturer datasheet: “The temperature sensor is factory-calibrated and the calibration data is stored in the on-chip non-volatile memory.”

** “Typical” use of a Pod is considered to be actively logging for a total of 8-16 hours with one full log download per day, every day while operating at 0°C – 20°C.
*** Exact battery life can vary depending on device age, use case and operating temperature. Battery life will be inherently diminished when Pods are operated continuously at temperatures below 0°C.
