Tecnosoft S-Radio Bendable

  •   Wireless temperature data logger
  •   View process data in real-time
  •   Food grade & waterproof
  •   Battery is user replaceable
  •   NIST equivalent certificate
  Request quotation

Categories: ,
General information

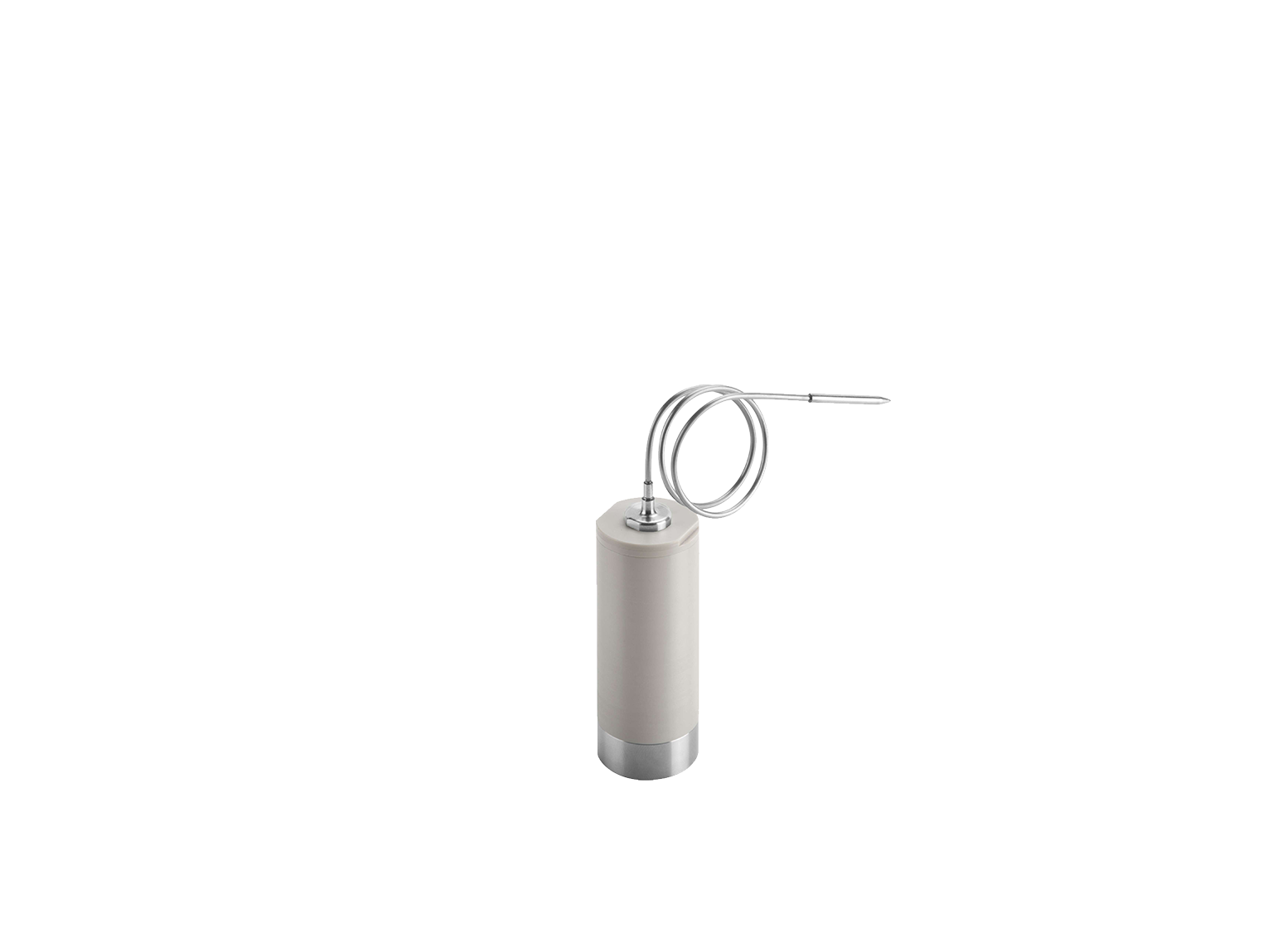

S-Radio Bendable wireless temperature data logger up to 140°C with bendable probe completely food grade and waterproof

S-Radio Bendable is a wireless  temperature data logger from -40°C to 140°C (calibration from 25°C to 140°C) with 30 cm bendable probe and 50 mm or on demand length external probe (probes cannot be switched) on a 5 mm base (base height is not counted for probe length), managed with Windows software and USB interface. Battery is user replaceable and the data logger is provided with an Accredia (NIST equivalent) traceable cetificate on 4 points.


View process data in real time

Thanks to S-Radio process data can be viewed in real time on PC screen along with progressive lethality (pasteurisation units) values. Alarms can be set on temperature and lethality value itself. With P-Radio you can act in real time on the process, knowing the thermal curve at the core of the product.


The other versions of the data logger are:

  • S-Radio: with rigid probe of different lengths
  • S-Radio 100 / 5 mm: with 100 mm length, 5 mm diameter rigid probe
  • S-Radio Flexible: with flexible cable probe and rigid probe at the end

The version for up to 100°C is available too, along with flexible, bendable versions. It is part of a series of data loggers divided in P-Radio (up to 100°C) and S-Radio (up to 140°C). They require an interface for PC connection: DiskInterface HS, Multibay. For real time data the USB Radio Receiver is needed as well.

There are also other models of high temperature data loggers, for pressure and humidity.

Technical specifications
 Description Specifications
 Dimensions  76 h X 30 Ø (mm)
 Probe dimensions  Probe base dimensions 13 h X 15 Ø (mm) – Bendable probe 300 l X 2 Ø (mm) – Probe 50 l X 3 Ø (mm) – Probe l on demand X 3 Ø (mm) (l on demand: min. 6 mm / max. 175 mm. For longer probes ask for quotation)
 Weight  105 gr
 Materials  Stainless steel AISI316L, PEEK
 Temperature range  -40°C ÷ +140°C
 Standard calibration points (temperature)  25/50/75/100/125/140°C
 Extra calibration points (temperature)  Within the range -40 °C ÷ +140 °C
 Temperature resolution  0,01 °C
 Temperature accuracy  ± 0,1 °C (within the calibration range)
 Memory (n. of acquisitions)  121.171
 Acquisition step  From 1 every second up, with 1 second steps
 Protection degree  IP68
 Battery life +3800000 Acquisitions to 1 second continuously (time @ 25°C. The battery life is shorter at low and high temperatures)
 Software & Mobile App  SPD, TS Manager, Process Monitor
 Accessories  DiskInterface HS, Multibay universale, USB Radio Receiver, Ethernet receiver, 4-20 mA receiver

Main features

  • With bendable cable to place the device near the packages instead on top and with rigid probe for penetration
  • Completely food grade and waterproof
  • All software calculate lethality value (F0, PU, A0 ecc.)
  • Replaceable battery (software shows battery status)
  • Real time data transmission, no installation requested
  • Accredia (NIST equivalent) traceable calibration certificate included
  • Available extended calibration from -40°C (order extra calibration points)



  • High accuracy and precision, food grade, probes of different sizes
  • Great ease of use in any type of package with the fixing system
  • Fast response time due to the probe of 3 mm diameter
  • Printed reports can be used for health regulations and ISO certifications
  • Learn about process progression in real time allows you to take action immediately, saving time, money and increasing the quality of the product


The system

The system is made up by:

  • S-Radio temperature data logger
  • DiskInterface HS or Universal Multibay
  • USB Radio Receiver or Ethernet Receiver (for Process Monitor Pro software only)
  • SPD software, TS Manager software (compatible with the FDA 21 CFR Part 11 regulation) or Process Monitor software
